Quick & Easy Assembly by
Spigot Connector with Safety Pins

Click for Parts Page
點擊上圖到配件頁

















Duo Trusses :





Duo 220 Truss Duo 290 Truss Duo 390 Truss Duo 1010 Truss













 Edge 390mm , Duo Truss.  (標準歐規二管排片390桁架)



The Duo Truss is only using in decorative or small scaffolding. There are
no Loading Test Report or Certification.

管桁架 只使用在装饰或简易棚。不提供载重测验认证报告


Loading Specification for Duo 390 Truss :

    1m 2m 3m 4m 5m 6m 7m


1278 544 275 140 78 53 ..


Deflection. (mm)

0 1 2 2 2 3 ..


1277 900 458 230.5 131.6 82 ..


Deflection. (mm)

0 1 1 1 2 2 ..


 Aluminum Truss >> Multi Purpose Truss >>  DUO-290   (= M290B Duo-BTB)

Duo Straight 1000mm
C39-20110

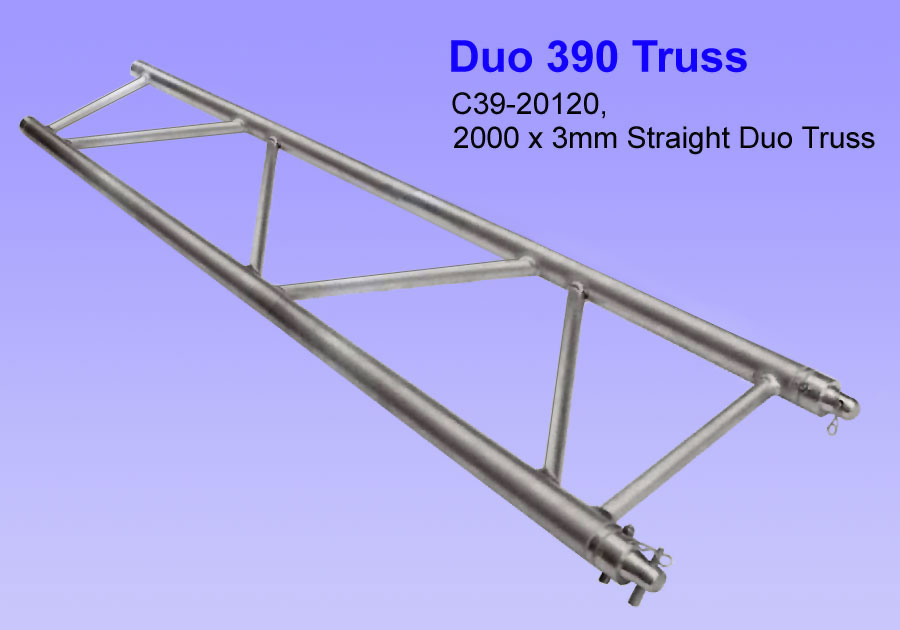

Duo Straight 1000mm
C39-20120
Duo Straight 3000mm
C39-20130


Duo 2 Way V120º V-Angle
C39-20506

Duo 2 Way 45º V-Angle
C39-20210

Duo 2 Way 60º V-Angle
C39-20310


Duo 2 Way L90º V-Angle.
C3
9-20406
Duo 2 Way V135º V-Angle
C39-20606
Duo 4 Way Cross V-Angle
C39-21205

Duo 3 Way T90º V-Angle
C39-21106
Duo 2 Way L90º H-Angle
C39-20906
Duo 2 Way V120º H-Angle
C39-21005


Duo 3 Way T90º V-Corner
C39-21506
Duo 3 Way T90º H-Angle
C39-21705








Duo-290 Messestand Trussing :
Die 2 Punkt
Traversensystem für normale Belastungen. EN AW6082-T6 Legierung.
