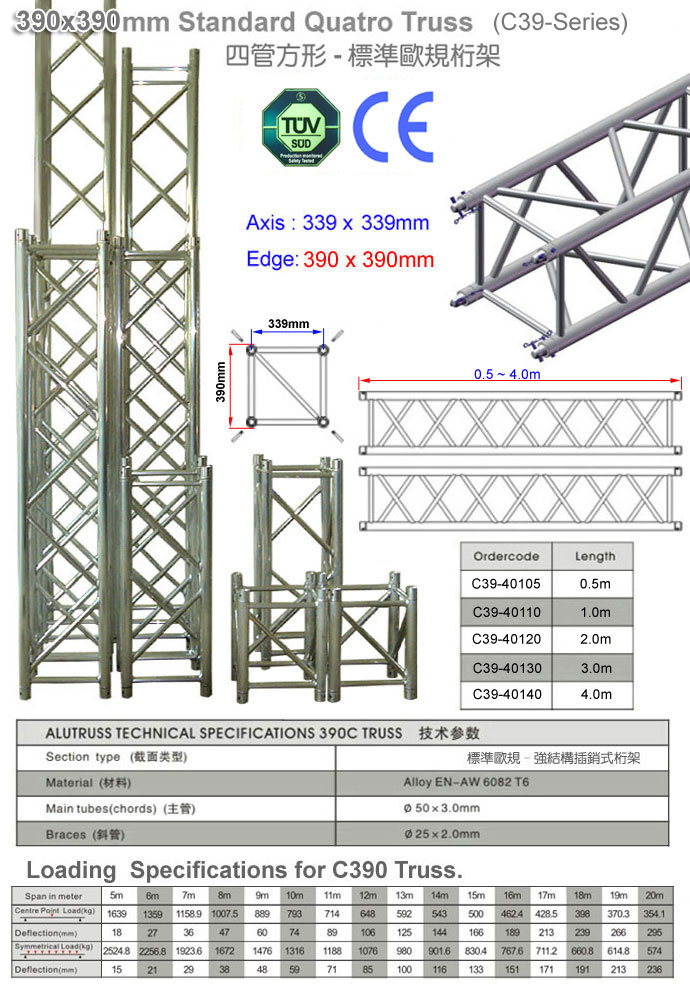

 Aluminum Truss >> Multipurpose Truss >> C39-Series. Quatro 390x390mm Truss
  Quatro 390 Truss Main Tubes : Ø50 x 3mm , Braces :  Ø25mm x 2mm
　 　
C39-40110
Quatro Straight, 1000mm		 C39-40120
Quatro Straight, 2000mm		 C39-40130
Quatro Straight, 3000mm
　 　 　

Heavy Duty Straight Beam Truss
C39 Quatro (Big Coupler)		 Quatro 390 Conical  KIT
(Same as Quatro 290 Conical KIT)		 C39-46390
6 ways 390 Box-Corner
　

(= M390L Quatro-QTL)

　
C39-40406
 Quatro L90º 2 Way Angle
　		 C39-40706
 Quatro T90º 3 Way Angle
　		 C39-40806
 Quatro 90º 4 Way Corner
　
　 　 　
C39-40906
 Quatro 4 Way T-Angle
　		 C39-41106
 Quatro 4 Way Cross Angle
　		 C39-41006
Quatro 5 Way Cross T-Angle
　
　 　
C39-41206
Quatro 6 Way Cross Angle
　		 C39-43T14
 Quatro 3 Way 14º Top Angle
　		 C39-43W14
 Quatro 3 Way 14º Slope Angle
　
　 　 　
Base-800.  (800mm Dia.)
for 290 & 390 Truss		 Quatro 390 Steel Base
(600x600x8mm)		 Quatro 390 Steel Base
(1100x1100x12mm)


View Detail Pictures (30m span test)
 30米跨距-產品組裝測試
　
Remarks : All above 390 Angles was made by Ø50x3mm Tubes.
Buhnen Traversen : Traversensystem fur schwere Belastungen.
　
　

Unser Buhnen Truss hat ein Kantenmas von 390mm und eine EN AW6082-T6 Legierung. Die vier Aluminium Gurtrohre sind aus O50mm und die angeschweisten Diagonal Streben sind aus O20mm Aluminiumrohren mit jeweils 2mm oder 3mm Wandstarke gefertigt und geben der Alu Traverse sein typisches und bekanntes Aussehen.
　
Remarks :
 Heavy Duty Straight 390 Truss Weights +/- 7.8kgs / m .  Main Tubes:Ø50mm x 3mm , Braces:Ø20mm x 2mm
 All Length truss are includes EN AW2011-T6 Connect-KIT.
Average Load : kgs / meter   4m 6m 8m 10m 12m 14m 16m 18m
 Average 612 405 254 160 107 77 56 43
Total 2448 2430 2032 1600 1284 1079 896 688
Load / kgs  2m 4m 6m 8m 10m 12m 14m 16m 18m
 2290 2070 1370 1015 790 650 540 456 390
 Be Careful : Never overpass the load specifications .
