Edge

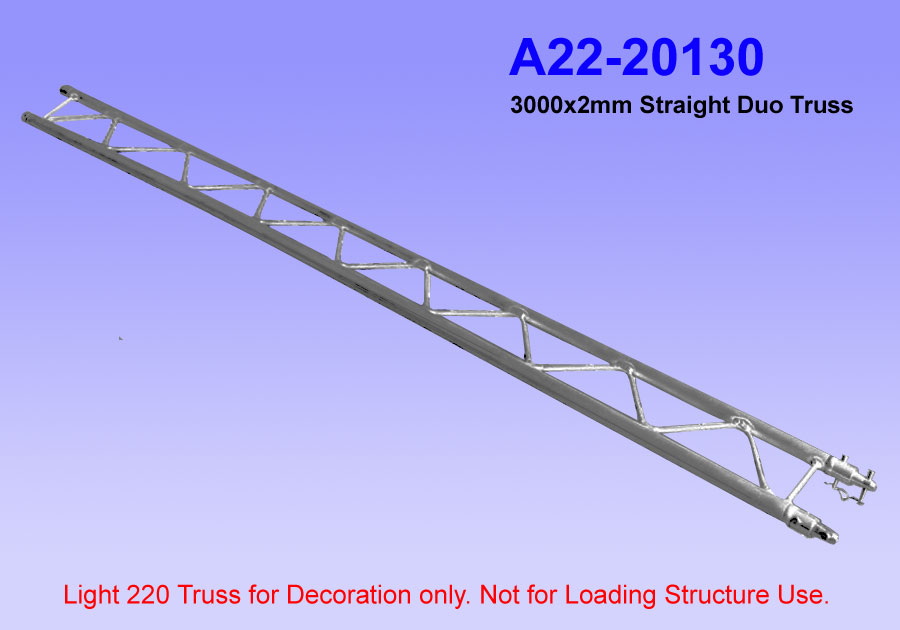

220mm , Duo Deco.Truss.
(標準歐規二管排片220桁架) |
|
Main Tubes :
Ø32 x 2mm,
Brace Tube :
Ø10 x 2mm,
Ø32mm
Bushing
with Conical Coupler . |
 |
|
|
|
|
The Small
Duo Truss is only using in decorative or simple small
scaffolding. There are no Loading
Test Report or Certification.
二管排片之小桁架
只使用在装饰或简易搭棚。不提供载重测验及认证报告。 |
|
|
|
|
|
Loading
Specification for Duo 220 Truss : |
| |
|
1m |
2m |
3m |
4m |
5m |
6m |
7m |
| |
 |
382.9 |
278.1 |
245.3 |
260.2 |
205.2 |
169.3 |
.. |
| |
Deflection.(mm) |
3 |
9 |
21 |
36 |
90 |
105 |
.. |
| |
 |
382.5 |
378.2 |
377.5 |
376.1 |
339.5 |
280.3 |
.. |
| |
Deflection.(mm) |
3 |
8 |
15 |
30 |
45 |
81 |
.. |
|
| |
|
|
|
|
|
|
|
|
 |
|
|
