Quick & Easy Assembly by
Spigot Connector with Safety Pins

Click for Parts Page
點擊上圖到配件頁

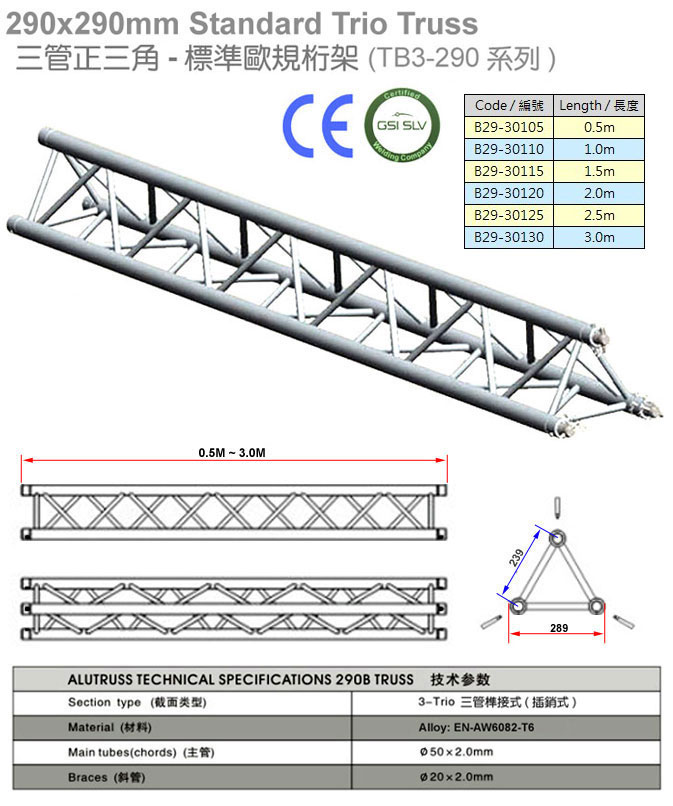

B29-Trio Series : Tube Edge 290x290mm , 3 Tube TrioTruss.  (標準歐規三管290桁架)





220x220mm Trio Truss290x290mm Trio Truss390x390mm Trio Truss








Aluminum Truss >> Multi Purpose Truss >>  B-Type Trio 290 Truss. ((B29-T- Series)



Our Series Number "TB-" items was changed  to :  "B29-" .

B29-30025
 Trio Straight  250mm		 B29-30105
 Trio Straight  500mm		 B29-30110
 Trio Straight 1000mm

B29-30120
 Trio Straight 2000mm		 B29-30130
 Trio Straight 3000mm		 B29-30210
 Trio 2 way V45º Angle

B29-30310
Trio 2 way V60º Angle		 B29-30805
Trio 2 Ways L90° Angle		 B29-30405
Trio 2 Ways L90° Angle

B29-30505
Trio 2 Way V120º Angle		 B29-30605
Trio 2 Way V135º Angle		 B29-30905
Trio 3 Ways T90º Angle

B29-30705L
Trio 3 Ways 90º Left Corner		 B29-30705R
Trio 3 Ways 90º Right Corner		 B29-31005
Trio 3 Ways T90º Angle

B29-31605
Trio 3 Ways T90º Angle		 B29-31105L
Trio 4 Ways 90º Left Angle		 B29-31105R
Trio 4 Ways 90º Right Angle

B29-31205
 3 Way T90º Angle + 1 Horizontal		 B29-31305
Trio 4 Ways Cross Angle		 B29-31405
4 Ways Cross + 1 Down Way


B29-31505
Trio 5 way Angle

TB3-290 Messestand Trussing :
Die 3 Punkt Traversensystem für normale Belastungen. EN AW6082-T6 Legierung.
