Aluminium Truss
>>
Quatro 400 Truss
>>

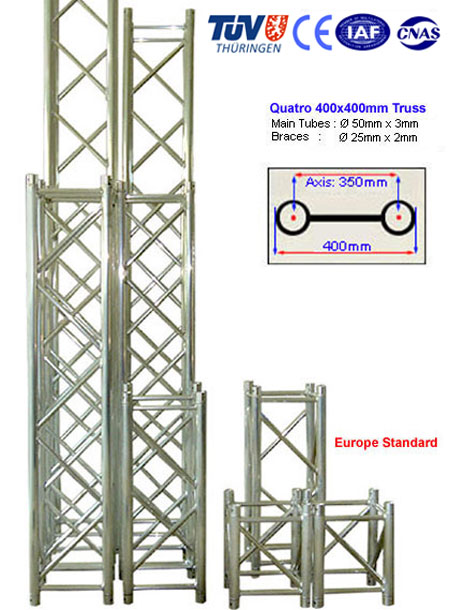

C40 Series, Quatro 400x400mm Straight .
(400x400mm 正方型歐規桁架) |
|
|
|
產品使用厚度3mm主管,
副管為25x2mm。如較大負載之使用,可內加焊對角斜管補強管. (產品編號則改為: X40系列, 例:
X40-40130 ) |
|
 |
|
Item No. |
Length. |
Meas. |
|
(C-Type)
|
(mm) |
(cu'ft) |
|
C40-40105 |
500 |
3.22 |
|
C40-40110
|
1000 |
6.23 |
|
C40-40115 |
1500 |
9.19 |
|
C40-40120 |
2000 |
12.17 |
|
C40-40125 |
2500 |
15.13 |
|
C40-40130 |
3000 |
18.10 |
|
C40-40140 |
4000 |
24.04 |
|
|
|
|
|
C-Series
main tube thickness
3mm |
|
B-Series
main tube thickness
2mm |
|
Description :
Tubes: Alloy EN AW6082-T6,
Coupler: Alloy EN AW2011-T6
Shape : 400x400mm Square.
Long : 500mm to 4000mm,
Main Tube
: Ø50 x 3mm,
Brace Tube : Ø25 x 2mm.
|
Additional Diagonal
Brace :
If need use for beam
and long span,
There are also additional Diagonal
Line Brace on the middle. for
Crossbeam Anti-bending.
1
meter for 2 pcs,
2 meter for 3 pcs,
3 meter for 4 pcs,
4 meret for 5 pcs.
|
|
|
