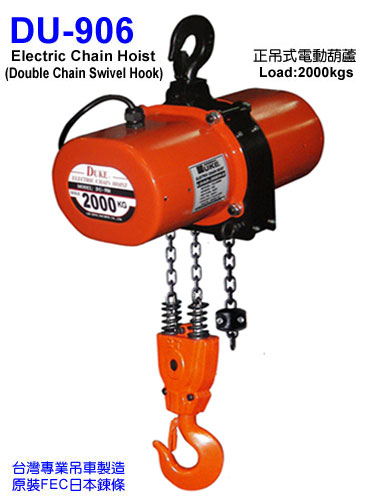

 Chain Hoist >> DU-906 : 2000kgs Electric Chain-Hoist with Double Chain Swivel Hook.



Power Supply : 3ph , 220V , 380V, 440V .

Power Consumption :
  Up: 6.0Amp, Down: 1.8Amp .

Acccordance : DIN  Accordance with DIN 5684

 Chain Ring Spec. :  Ø 7.1mm
 Standard : 3 Meter.
 Available :  to 20 Meter.
 Chain Import from Japan FEC.

Hoist Lifting Speed (FPM)  Speed : 50Hz 3.0M/min,
              60Hz 3.5M/min.

 Chain Material :
 Grade 80 super alloy load
 chain is precisely calibrated
 and heat-treated  for long life.

Approx Shipping Wgt.  N / W :  55 kgs
 G / W :  66 kgs

 Loading : 2000 kgs
 Safety factor is more then 6-1

Shipping Package :  Each in carton, 3.7cu'ft

 Drop Forged from Alloy Steel.
 Equipped safety with  latch
 and 360
º Double Chain swivel hook.
.
