Chian Hoist >>

Optional parts for CH-1000 :


Safety Sling for Chain Hoist

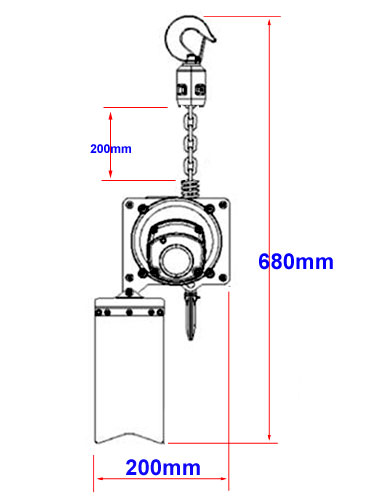

 Chain Hoist >> DH-500 : Load 500kgs Electric INVERSION Light-Duty Chain Hoist .

Power Supply :  1 ph ,110V or 220V .

 Power Consumption :
    Up: 3.8Amp, Down: 2.1Amp .

Acccordance : DIN  Motor: 1.3kw

 Chain Ring Spec. :  Ø6.3mm
 Available :  3 to 15 Meter.

Hoist Lifting Speed (FPM)  Speed : 50Hz 5M/min,
              60Hz 6M/min.


 Chain Material :
 Grade 80 super alloy load
 chain is precisely calibrated
 and heat-treated  for long life.

Approx Shipping Wgt.   N / W : 18 kgs
  G / W : 22 kgs

 Loading : 500 kgs
 Safety factor is more then 6-1

Shipping Package :  Each in carton, 2.1 cu'ft

 Drop Forged from Alloy Steel.
 Equipped safety with  latch
 and 360
º swivel hook.

Light Chain-Hoist : Was suitable for small Roof Tower by 150x150, 240x240, 250x250mm Trussing
